Oil Level Indicator Bulls Eye - Stainless Steel
Douglass bullseye level indicators made in stainless steel are durable and corrosion-resistant components designed for visually monitoring fluid levels and conditions in various industrial applications. Featuring a circular glass window, these indicators allow for easy observation of oil levels and detection of any contamination.
OUR WARRANTY
100% Satisfaction Guarantee
Douglass warrants merchandise against defective workmanship and materials that become apparent within a period of 12 months from the date of receipt of invoice by the purchaser (hereinafter referred to as the warranty period). All liabilities under the warranty provisions shall expire when the warranty period has expired. Please feel free to contact us if you have any questions or comments.
SHIPPING AND PACKAGING
At Douglass, we use a unique and patented packaging method that minimizes the risk of glass damage during shipping. This system ensures your products arrive in perfect condition, just as we would like to receive them ourselves.
We understand that not all glass is the same, so we tailor our packaging techniques based on the type and quantity of products you order. This ensures maximum protection for every shipment.
The stainless steel construction ensures long-lasting performance, even in harsh environments, while the threaded design facilitates easy installation into tanks, reservoirs, or pipelines. These indicators are also straightforward to maintain, ensuring accurate and consistent readings over time. By preventing equipment damage due to low or contaminated oil levels, Douglass bullseye level indicators enhance safety and reliability. They offer a cost-effective solution for monitoring fluids in hydraulic systems, gearboxes, compressors, and other machinery, thereby ensuring optimal performance and extending the lifespan of essential equipment.
Bullseye Oil Sight Glass - Application
Hydraulic Systems: Monitoring the hydraulic fluid level to ensure proper system operation and prevent damage.
Gearboxes: Keeping an eye on oil levels and condition to maintain optimal performance and extend the life of gear components.
Compressors: Ensuring the appropriate oil level in compressors to avoid overheating and mechanical failures.
Machinery: General fluid level monitoring in various types of industrial machinery to ensure smooth and efficient operation.
Bullseye Oil Level Indicator - Types
Type P (Full View): Provides a complete view into the tank, allowing for easy observation of the fluid level without any obstructions.
Type N (Level Contrast): Features a bottom painted in white with a red dot in the middle, creating a contrast that makes it easier to indicate the oil level accurately.

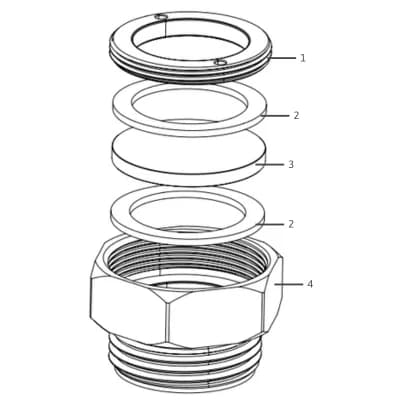

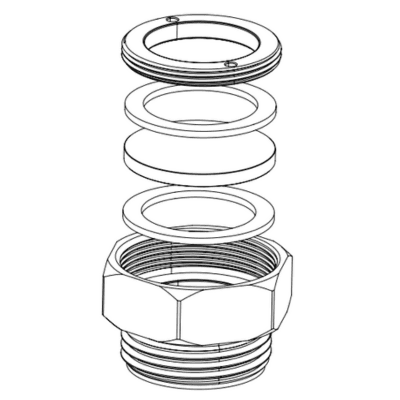

Sight Glass Windows - Parts and Materials
| Item | Part name | Material options |
|---|---|---|
| 1 | Ring |
|
| 2 | Gasket |
|
| 3 | Sight Glass |
|
| 4 | Connection |
|
TECHNICAL INFORMATION
| Units | A | B | C | D |
|---|---|---|---|---|
| 1/2" | 25 mm | 23 mm | 14 mm | 1/2" NPT / NPS |
| 3/4" | 32 mm | 23 mm | 19 mm | 3/4" NPT / NPS |
| 1" | 38 mm | 24 mm | 25 mm | 1" NPT / NPS |
Installation of the Bullseye Oil Level Indicator
Benefits of proper installation
Preparation
Ensure the machine or tank is turned off and depressurized. Clean the mounting area on the tank or reservoir to remove any dirt, oil, or debris using a cleaning cloth.
Inspect the Sight Glass
Check the Douglass bullseye sight glass for any visible damage. Verify that the threads and sealing surfaces are clean and intact.
Align the Sight Glass
Position the Douglass bullseye sight glass at the designated mounting point on the tank or reservoir. Ensure the sight glass is oriented for optimal visibility.
Thread the Sight Glass
Carefully thread the sight glass into the mounting port. Hand-tighten initially to ensure the threads are correctly aligned and not cross-threaded.
Tighten the Connections
Use a wrench or spanner to tighten the connections securely. Be cautious not to overtighten, as this can damage the threads or the sight glass.
Check Alignment
Ensure the bullseye sight glass is properly aligned and visible. Adjust if necessary before final tightening.
Inspect Seals
Check all seals and connections to ensure there are no gaps or potential leak points.
Test the Installation
Slowly fill the tank or reservoir with oil while observing the sight glass for any signs of leaks. Check the oil level to ensure the sight glass accurately reflects the fluid level.
Final Check
Once the tank is filled, recheck all connections and the sight glass for proper installation and operation.
Documentation
Record the installation date and any observations in the maintenance log for future reference.
