Sight Flow Indicators Threaded Double Window HP
Sight Flow Indicators are devices used in piping systems to provide a visual indication of the flow of liquids, gases, or slurries within the system. They are crucial for monitoring and verifying the flow and condition of the media without disrupting the process.
OUR WARRANTY
100% Satisfaction Guarantee
Douglass warrants merchandise against defective workmanship and materials that become apparent within a period of 12 months from the date of receipt of invoice by the purchaser (hereinafter referred to as the warranty period). All liabilities under the warranty provisions shall expire when the warranty period has expired. Please feel free to contact us if you have any questions or comments.
SHIPPING AND PACKAGING
At Douglass, we use a unique and patented packaging method that minimizes the risk of glass damage during shipping. This system ensures your products arrive in perfect condition, just as we would like to receive them ourselves.
We understand that not all glass is the same, so we tailor our packaging techniques based on the type and quantity of products you order. This ensures maximum protection for every shipment.
Add-ons to improve flow visibility
Full View
For easily visible fluids, with color, turbulence, and clarity. They easily detect the presence of solids or foreign products in the handled fluid. They can be mounted in any position.
Flapper
Internally mounted with a PTFE flapper, where the position indicates the direction of the fluid. Used in clear fluids that are difficult to observe; they are normally mounted horizontally, and only in vertical positions with ascending fluids.
Drip
Allow for the formation of drops of low-volume or intermittent fluids, for example in unitary distillation operations. They are mounted only in a vertical position and descending flows.
Spinner
Internally mounted with a PTFE spinner that rotates with the passage of the fluid, widely facilitating observation of dark, translucent, and clear fluids that are difficult to observe with the naked eye. They can be mounted interchangeably in any horizontal or vertical position.
The Double Window sight flow indicator allows for a higher number of configurations in terms of types of gaskets and types of sight glass, allowing for greater usage parameters in terms of pressure rating and high-temperature applications. Sight Flow Indicator — HP model: The Douglass HP double window sight flow indicator has its body forged in one piece, which grants additional robustness and durability. After that, solid units are welded to the ends of the forged pipes and then machined, enabling this model to have any type of connection for every type of application.

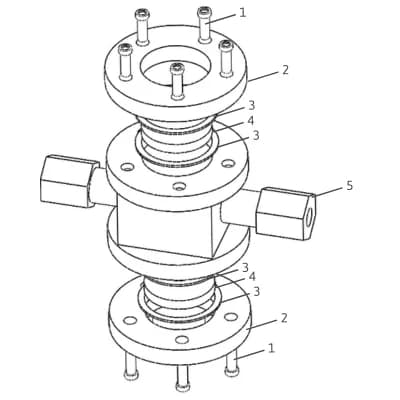

Threaded Double Window HP - Parts and Materials
| Item | Part name | Material options |
|---|---|---|
| 1 | Bolts |
|
| 2 | Covers |
|
| 3 | Gaskets |
|
| 4 | Sight Glasses |
|
| 5 | Body |
|

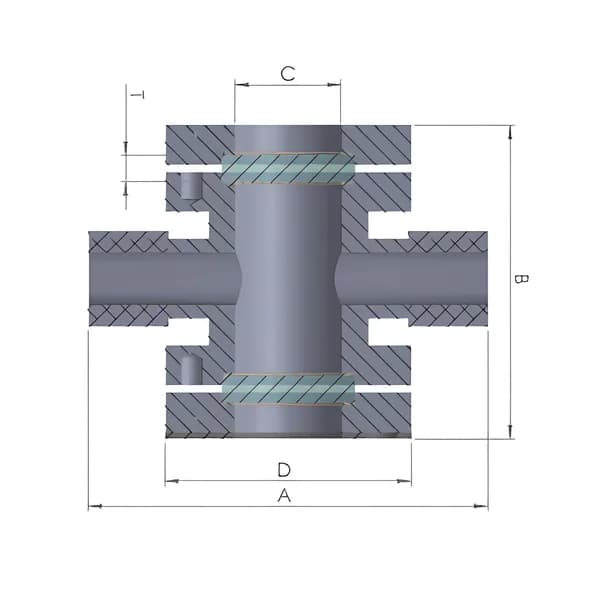

TECHNICAL INFORMATION
| Measure | 1" | 1-1/2" | 2" |
|---|---|---|---|
| A (Distance between faces) | 7" (177.8 mm) | 8" (203.2 mm) | 9" (228.6 mm) |
| B (Distance between covers) | 5" (127.0 mm) | 5.5" (139.7 mm) | 5.5" (139.7 mm) |
| C (Visible process) | 2" (50.8 mm) | 2.5" (63.5 mm) | 3" (76.2mm) |
| D (Diameter of covers) | 4" (101.6 mm) | 4.5" (114.3 mm) | 5" (127.0 mm) |
| Glass (Total Diameter) | 2.5" (63.5 mm) | 3" (76.2 mm) | 3.5" (88.9 mm) |
| Glass (Glass thickness) | 5/8" (15.87 mm) | 5/8" (15.87 mm) | 5/8" (15.87 mm) |
Threaded Double Window HP - Installation. Materials and Tools Needed Double window sight flow indicator with flanged connections New Sight Glass acc DIN 7080 Appropriate gaskets for flanged connections Bolts, nuts, and washers compatible with the flange specifications Torque wrench Pipe alignment tools Personal protective equipment (PPE)
